Waveform Generator Pulse Signal Source

Description

    Features:<br />
    Adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals.<br />

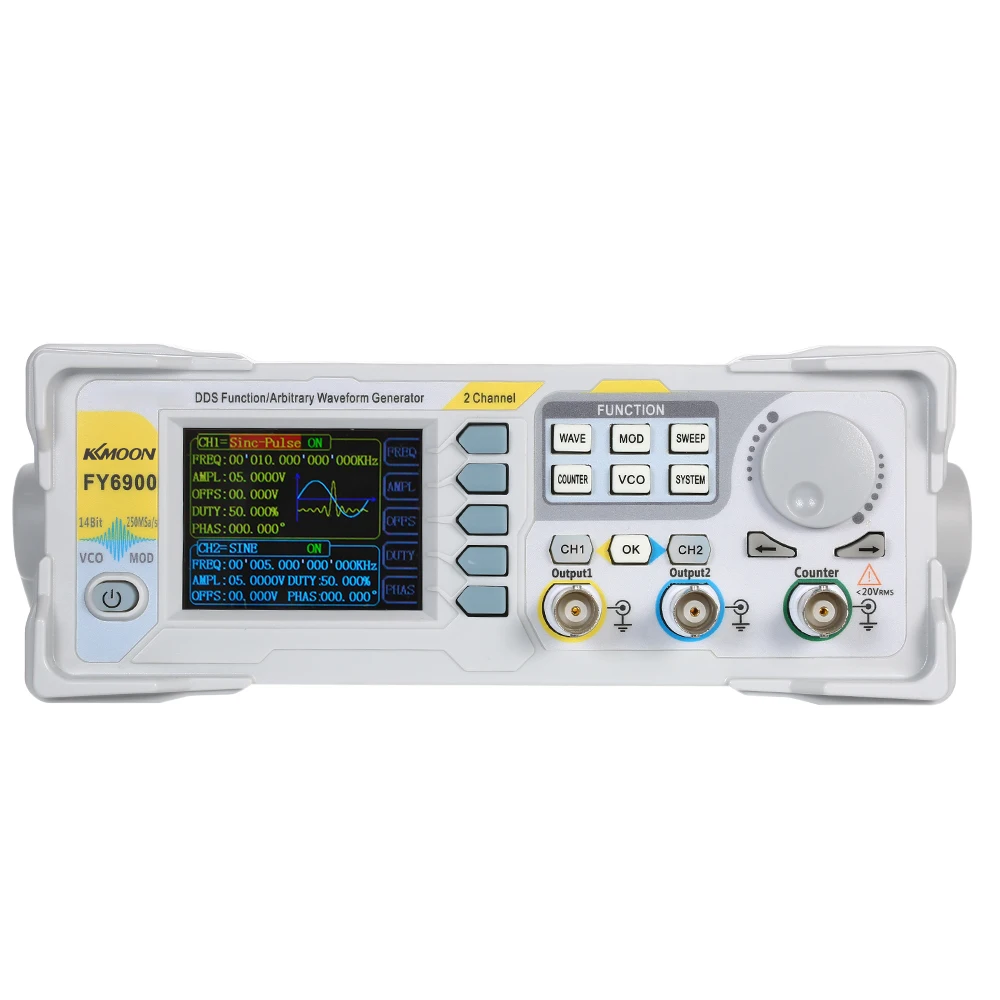

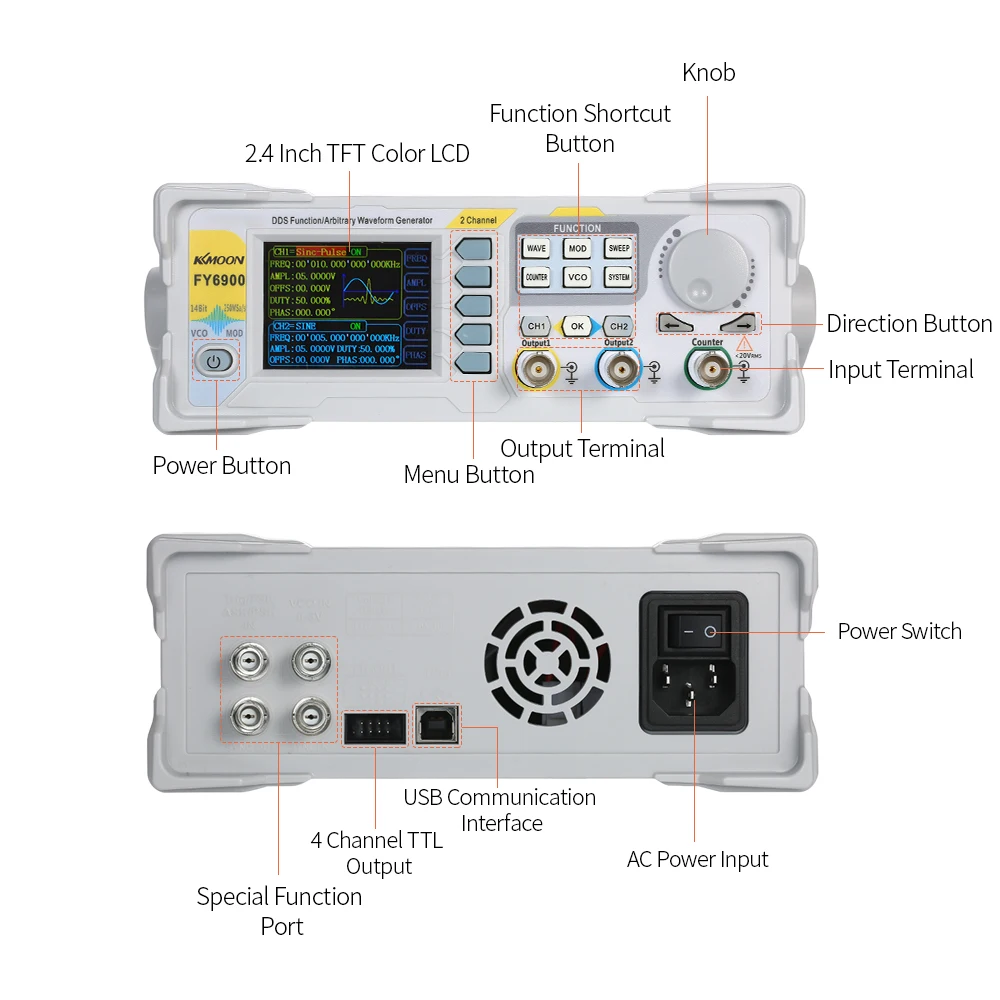

    2.4 inch TFT color LCD with 320*240 resolution, simultaneously display parameters and graphics of CH1 and CH2.<br />
    Adopt MagicPulse Technology, Low Jitter(RMS)
    The instrument uses 14-bit high-speed D/A converter chip (5Vpp output quantization error is less than 1mV), 300MSa/s sample rate, 14bits vertical resolution.<br />
    Can output up to 99 groups of functions / arbitrary waveform, contains 35 groups of preset waveforms and 64 groups of user-defined waveforms. Preset waveforms: Sine, Square (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, CMOS(0～12V), Four channels TTL, Exponential Rise, Exponential Fall, Noise, ECG, DC etc.<br />
    Enable to store 64 arbitrary waveform data files, each one of waveform storage depth 8192 points * 14bits; (The longer the waveform storage depth, the more detail the waveform is saved, and the signal details can be restored with high precision.)<br />
    Various modulation types: AM, FM, PM, ASK, FSK and PSK modulations.<br />
    Sweep Function: it can sweep 4 properties of signals including frequency, amplitude, offset and duty cycle; It has Linear and Logarithm two sweep types; 0.01S～999.99S sweep time; Up, Down and roundtrip sweep directions.<br />
    VCO Function (Voltage Control Output): can be achieved by an external input signal: voltage controlling frequency, voltage controlling amplitude, voltage controlling offset, voltage controlling duty cycle and PWM modulations.<br />
    Burst Output Function: there has Manual Trigger, internal CH2 Trigger, and External Trigger for your options. It can output 1～1048575 pulse trains.<br />
    100M Frequency Meter Function: it can measure frequency, period, pulse width and duty cycle. Max. frequency workable is 100MHz and Min. frequency workable is 0.01 Hz.<br />
    Counter Function: it has 2 coupling measure modes including DC coupling and AC coupling. This design can solve inaccuracy problem of AC coupling.<br />
    Standard dual full functional channels which are equivalent to two independent generators.<br />
    Channel SYNC Function: support waveform copy and state copy between channels.<br />
    Support two or more signal generators connected to achieve multi-channel output, the maximum support 16-channel synchronous output, the phase between each channel can be adjusted.<br />
    Precisely adjust the phases of the two channels. Precision can be 0.01°.<br />
    Min amplitude resolution can be up to 1mV. Amplitude range is 1mV～25Vpp.<br />
    Duty-cycle of each channel can be adjusted independently 0.01%-99.99%, the adjusting resolution is 0.01%.<br />
    -12V～+12V DC Offset function. Resolution 0.001V.<br />
    Save Function: it can save 20 sets user-set parameters and can be loaded at any time.<br />
    Communicating Function: all functions can be controlled by PC program and the communication protocol is open for secondary development.<br />
    Output Short-circuit Protection: all channels can work more than 60 seconds when the load is short-circuited.<br />
    Provide powerful waveform editing PC software. Users can download arbitrary waveform to this instrument after edit through PC program which is included in user CD.<br />

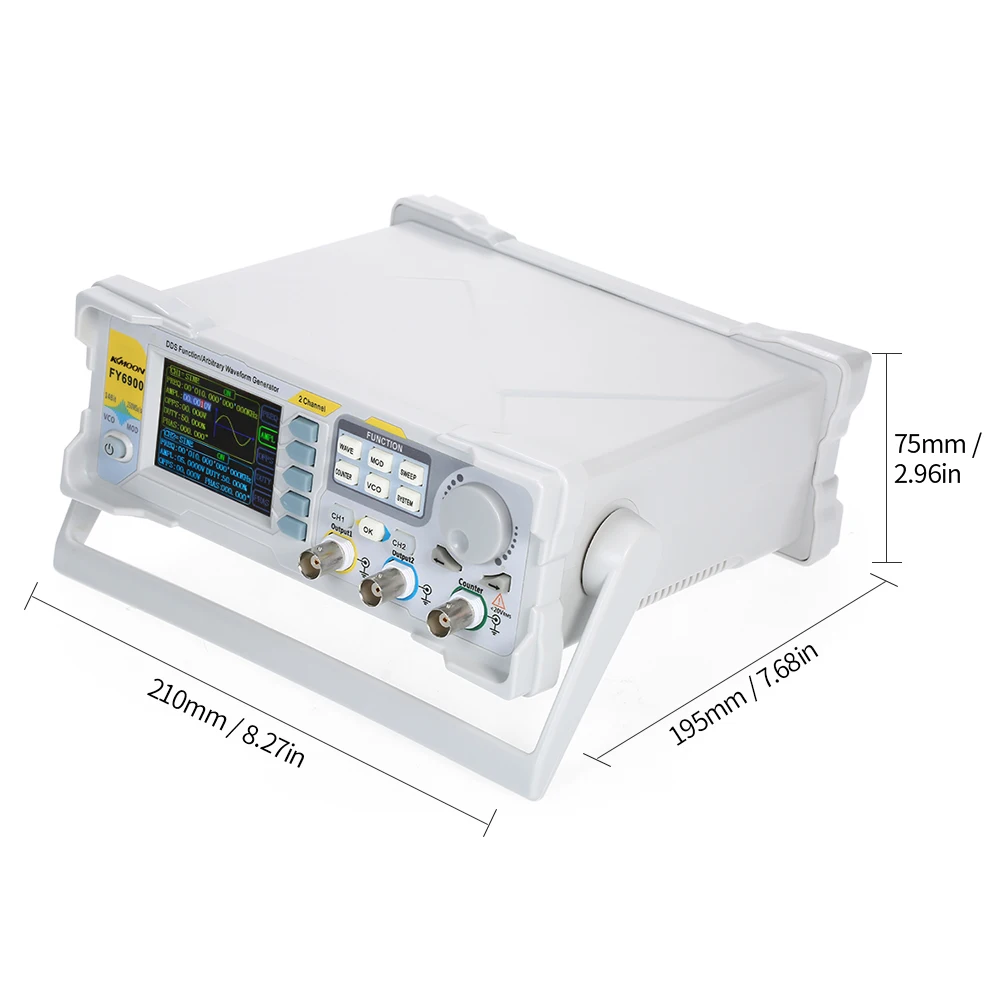

    Adopt ABS plastic shell with table type design. Use 100-240V (AC) wide range voltage power supply.<br />
    <br />
    Specification:<br />
    Plug Type: AU / EU / US / UK (Optional)

    <br />
    Package List:<br />
    1 * DDS Signal Generator<br />
    1 * Power Cable<br />
    1 * USB Data Cable<br />
    1 * BNC-BNC Cable<br />
    2 * BNC-Clip Cable
