Description
Shopping mall guide 16.8″ 19.3″ 24.4″ 28″38″ 48″50.5″ 59.7 inch advertising strip/ stretch/ bar LCD panel/ shelf edge digital signage display
| Bar screen android tablet for business | ||
| System | CPU | Quad core cortex A9,1.6G,RK3188 (We can choose to use A64/RK3128/RK3288/RK3399 chip to design) |
RAM | 1GB | |
Internal memory | 8GB | |
Operation system | Android 4.4 Default | |
Display | Panel | 19″bar screen |
Resolution | 1920*360 | |
Active area | 476.64(H)x 89.37 mm(V) | |
Viewing angle | 89/89/89/89(L/R/U/D) | |
Display mode | Nomally black ,IPS | |
Contrast ratio | 1200 | |
Luminance | 300cd/m2 | |
Aspect Ratio | Bar screen | |
Network | WiFi | 802.11b/g/n |
Ethernet | 10M/100M ethernet | |
Buletooth | BT 4.0 | |
Interface | USB Host x 3 | USB 2.0 |
USB OTG | USB OTG | |
SD card slot | SD/MMC card slot | |
Earphone | 3.5mm earphone | |
Power Jack | DC input | |
RJ45 | Ethernet | |
Media plays | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc. |
Photo | jpeg | |
Other | VESA | Wall mounting |
Language | Multi-language | |
Working temp | 0–40degree | |
Power consumption | 30W | |
Accessories | Adapter | Adapter,12V,3A |
User manual | yes | |
What is the Specification of our kiosk?
| Index | Model | GT43B |
Outside area (mm) | 720.5(W)*162(H)*56.4(D) | |
Display area (mm) | 698.5(W)*140(H) | |
Size | 28 inch | |
Display | LCD | |
Dot pitch | 0.1845(H) *0.1845(V) | |
Resolution | 1920×758 | |
Brightness | 500-700cd (optional) | |
Contrast | 3000:1 | |
Viewing angle | 89/89 | |
Response time | 8ms | |
Color | 1677 million color | |
Color Gamut | 92% | |
Connection method | Input method | HDMI/VGA/DVI/BNC,Network board/(optional) |
Video input | CVBS | |
Control method | RS-232 485 | |
Network function | optional | |
Power | Power consumption | 26W |
Standby power consumption | 5W | |
Power management | DC 24V | |
Mechanical indicators | Stand installation | Need to be customized |
Weight | 5.18Kg | |
Operating environment | Operating temperature | 0℃~ 50℃ |
Humidity | 10~80% | |
Altitude | 3000m | |
Mean Time Between Failures | 50000 hours | |
Auxiliary material | System equipment connection wire | customized |
Display unit bracket | optional | |
Connection wires | , Power line, serial control line |
| MODEL | GT49M |
| Screen Size | 49 inch |
| Display Area | 1209.6*320mm |
| Resolution | 1920*508 |
| Brightness | 500cd/㎡ |
| Contrast | 1000:1 |
| Color | 16.7M/8bit |
| Viewing Angle | 89°/89°/89°/89°(L/R/U/D) |
| Touch Screen | Optional |
| I/O | HDMI*1, VGA*1 |
| All-in-one Solution | Optional |
| Power Input | 100-240 VAC, 50/60 Hz |
| Power Comsumption | 100W |
| Net Size | 1244.6*363.1*52.2mm |
| Net Weight | 16.8kg |
| Appearance | Black/white metal shell, Anti-glare glass (optional) |
| Installation | Shelf bracket (optional), VESA holes (optional) |
| Accessories | Power cord |

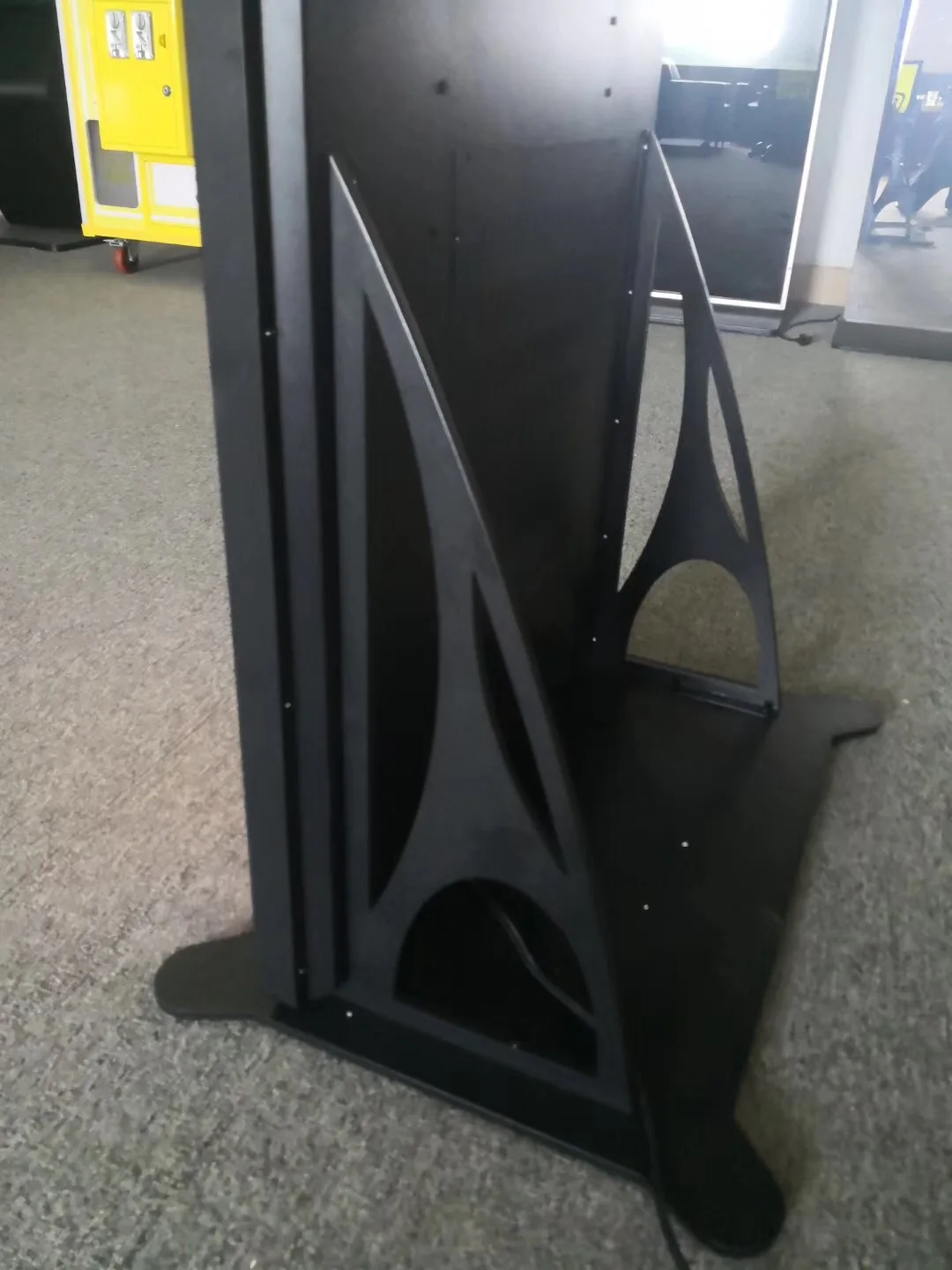

Product Pictures
Product features
1. Humanization sleek & smart design
- Metal wiredrawing craft on the frame
4.Multi touch operation
5.Worldwide certificate approval, such as RoHS, CE, and FCC
Application:
The application of bar-type LCD display is very wide.
Applicable areas: public transportation, subway, airport, shopping mall, security monitoring, command and dispatch center, exhibition center display system, multimedia teaching, government unit, school studio, video conference system, multi-function display Hall, entertainment, restaurants, publicity display, brand store image display, television, business exhibition hall.
