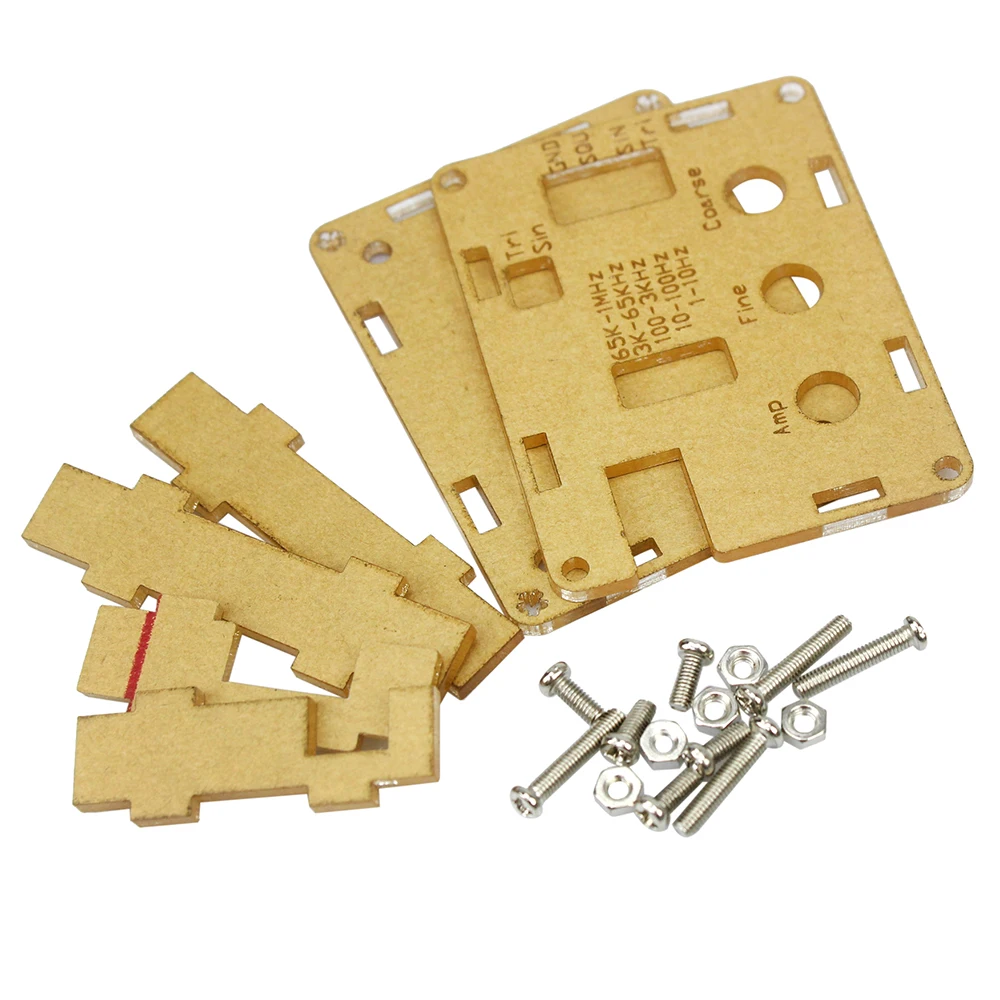

Function Signal Generator DIY Kit

Description

Introduction

Voltage Supply: 9-12V DC Input

Waveforms: Square, Sine & Triangle

Impedance: 600 Ohm + 10%

Frequency: 1Hz – 1MHz

SINE WAVE

Amplitude: 0 – 3V at 9V DC input

Distortion: Less than 1% (at 1kHz)

Flatness: +0.05dB 1Hz – 100kHz

SQUARE WAVE

Amplitude: 8V (no load) at 9V DC input

Rise Time: Less than 50ns (at 1kHz)

Fall Time: Less than 30ns (at 1kHz)

Symmetry: Less than 5% (at 1kHz)

TRIANGLE WAVE

Amplitude: 0 – 3V at 9V DC input

Linearity: Less than 1% (up to 100kHz) 10mA

Feature

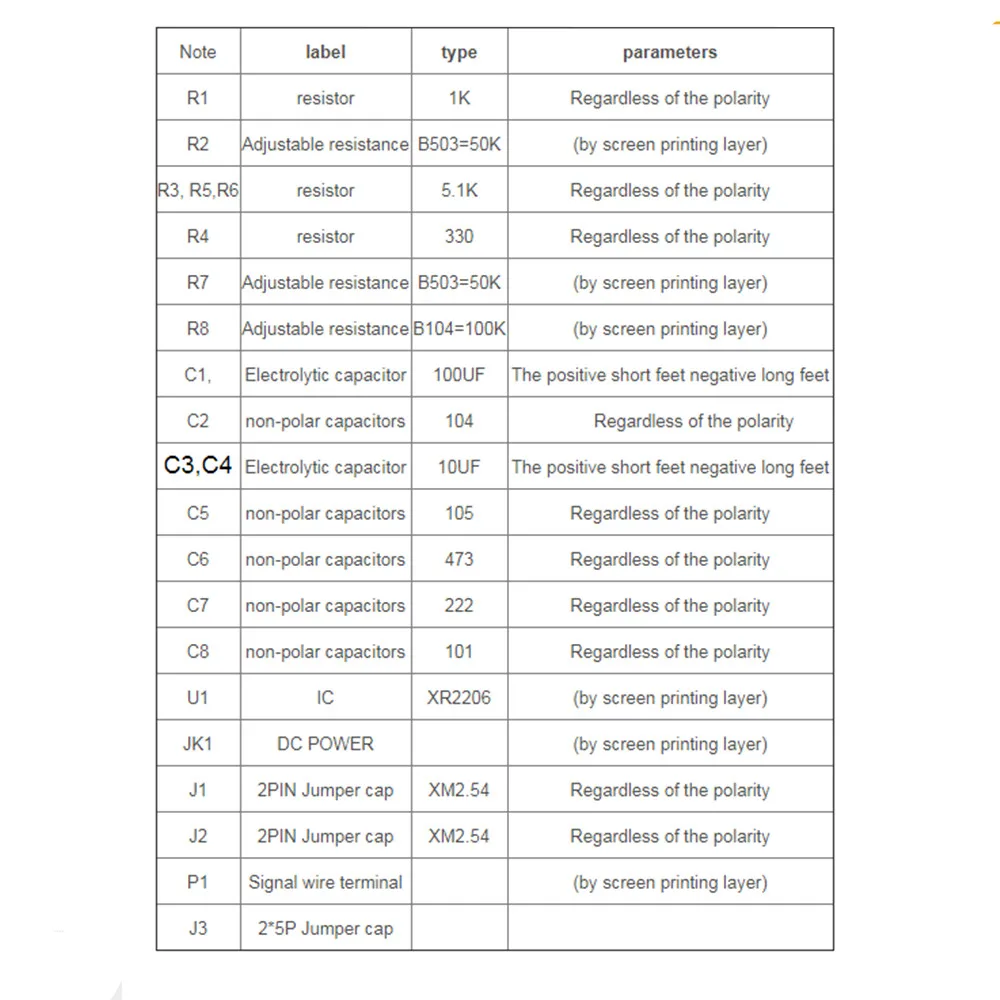

The welding installation considerations, follow these steps:
1. The components are welding the front board, from low to high principles, namely the first low welding components, such as, capacitor, resistor, diode, etc.
2.Welding IC socket, terminal blocks, finally power socket, adjustable potentiometer.
3.The back with a diagonal cutting pliers to cut short the pins as far as possible
Debugging steps:
1After completion of welding on IC, XR2206, pay attention to the direction of IC, insert the might damage the chip!
2. check the IC whether against, such as anti please timely correction.
3. Insert the power supply, power supply for 5.5 * 2.1 port, inside outside is negative polarity. For 9-12 v power supply voltage. The waveform may not be stable for more than 12 v
Using the step
1. J1 jumper cap plug in, SIN/TRI blue terminals output sine wave (note J1, J2 can only insert one of)
2. J2 jumper cap plug in, SIN/TRI blue terminals output triangular wave (note J1, J2 can only insert one of)
3. SQU blue terminals output pulse
4. AMP : Sine wave, triangle wave amplitude adjustment
5. FINE : Frequency fine adjustment
6. Coarse : Frequency of coarse adjustment
Schematic diagram of Function Generatorc
